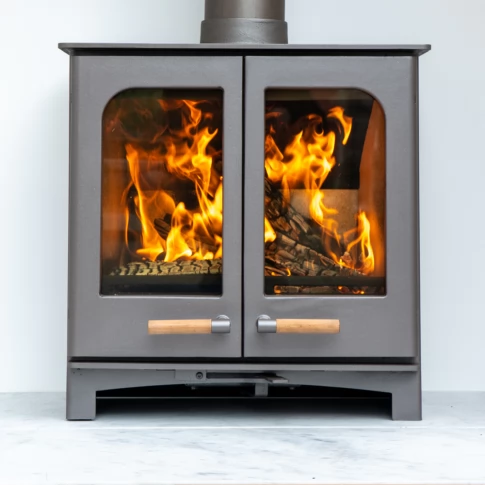

BURNT GREY – Ecosy+ Twin Door Panoramic Defra Approved 5kw Eco Design Ready – Woodburning Stove

The Defra Approved 5kw Ecosy+ Twin Door Panoramic Slimline is one of the most up to date stoves on the market.

The Defra Approved 5kw Ecosy+ Twin Door Panoramic Slimline is one of the most up to date stoves on the market.  It has been tested and approved to meet the Eco Design requirements making this a stove for now and the future. These test results have been approved by HETAS and listed on their official website. Find out more about the Eco Design scheme at stoveindustryalliance.com.

Slimline

This stove answers a lot of customers’ problems – they need a physically large wood only stove but can only install one with a 5kw output. This has been achieved with this model by clever design. The external body is very wide (560mm) but the depth of the stove is shallow (314mm). The Purefire also has a twin layer construction – the inner layer has been tapered in at the sides making the fire box slightly smaller and therefore reducing the potential heat output. The firebox is still 400mm wide meaning large logs are not a problem.

This version is Defra-approved and listed on the smoke control government website under “Ecosy Panoramic Stove”

About

This advanced wood burning stove, suitable for a 12mm hearth, has been designed by Ecosy+ and tested at KIWA Gastec in Cheltenham to CE and British standards along with the new ERP testings for Eco Design.

This stove proves there is no need to spend £1000+ to get an advanced, good quality stove. Some of the features on this stove include tight locking elegant twin doors made from mineral cast iron, a fully welded steel body, complete integral fire brick lining, highly advanced baffle design, 5″ top and rear flue outlet and much more. An amazing 5 year guarantee is offered on this model; something that is not offered on any other stove around this price bracket.

We have tried to give the Defra-approved Twin Door Panoramic an aesthetic that would not look out of place in a traditional fireplace or modern free-standing set up. The stove’s air supply is solely drawn in from the rear and regulated by the sliding control on the front. This advanced design makes the stove adaptable for a “direct air feed” which is perfect for new homes. The dimensions of this outlet is 90mm internal diameter and 100mm external diameter. – Note – On a standard install you will not require a direct air feed kit or an air brick installed in the room for this stove. This will only apply for new builds.

We also have a stand/bench available for this stove. The stand is 275mm high and will provide log storage as well as increasing the stoves height.

Custom Finish

This unique colour is a firm favourite of everyone at Stove World UK HQ. We find it looks different in the changing light and has hints of Brown and Copper as the sunlight hits it. A perfect fit for someone looking for a unit that is truly unique. This version will be hand-finished by stove professionals here at Stove World UK. The whole unit will be stripped and repainted with the highest quality Calfire paint. Calfire is well respected in the industry because their paints are not only great-looking but highly durable. If you require more lengths of flue pipes, benches, or stand to be sprayed please call the team on 01256 889397 and we will work out a price for you.

Clean Burn System

The Ecosy+ has an advanced seconday/tertiary clean burn system. On more advanced units like this one, it is common to have the air fed in from the rear and split off to be fed under the fire, over the fire (Secondary burn) and over the glass to help keep it clean and clear (Airwash system). The secondary burn feature is a real advantage as this re-burns the initial gasses and smoke produced from the fire. This means you are getting every drop of heat from your fuel and in turn will save you filling the stove up as often, saving you money and time on fuel.

5 Year Guarantee

This covers the stove’s body and not the internal perishable parts like grates and fire bricks. Guarantee is activated when the stove is invoiced. 6 digit number on the top of each invoice is the warranty number.For stove to be covered it must be installed by a HETAS engineer or signed off by building control.

Stove Construction

Body – 10mm thick steel top and 5mm thick steel plate sides.

Grate – No grate required – Wood burns on the vermiculite base

Fire brick – Vermiculite

Why Are We So Cheap?

This is a common question we get asked and understand why people will sometimes wonder how it can be done so cheap. We design a large amount of our products and they come direct from our factory to us. This completely cuts out any middle men. We can stock over 2500 stoves at any one time and ship direct to the end user with no showrooms. We always suggest prospective buyers take a look at our glowing feedback that currently has over 7000 positive comments on our stoves and stove products.

DEFRA Approved

This version of the 5kw Panoramic has been rigorously tested and approved to burn wood in a smoke controlled zones. Defra approved stoves with 5″ flue outlets, like this one, can also be installed with a 5″ liner. The Defra approval has been achieved by factory fitting a mechanical stop to prevent secondary air closure beyond the 31mm open position.

Stove Features

  • Eco Design Ready – Approved by HETAS
  • HETAS (Cleaner Choice) approved, with a 66% improvement on the clean air act limit.
  • View on HETAS website.
  • DEFRA APPROVED
  • Over 80% efficient
  • Woodburning only with flat fire brick base
  • Reduced distance to combustibles materials (350mm side – 500mm rear)
  • Slimline – 560mm wide but only 5kw
  • KW Range – 3.6kw to 6.9kw (5kw nominal and shown on data plate.)
  • Suitable for 12mm hearth.
  • Can come fitted with either wooden handles or chrome handles depending on your preference. Please select your favourite when adding the stove to your basket.
  • Top and rear flue outlet.
  • FREE Ecosy+ printed over glove.
  • Chrome handle
  • Full vermiculite brick lining and base. (No grate or ash pan required for woodburning only stoves.)
  • Finished in heat resistant matt black paint.
  • Flue diameter 125mm (5”) with choice of top or rear flue outlet
  • Typical log approx 350mm long
  • Gross weight – 85kg
  • 10mm thick steel top, 5mm thick body
  • Pre-heated air wash system to help keep the glass clean
  • Tertiary air system that re-burns the smoke for a clean and efficient burn.
  • Air Brick/Vent Required? No (Some exceptions apply)
  • Height : 551mm, 21.69 inches.
  • Width: 560mm, 22.04 inches.
  • Depth : 314mm 12.36 inches.
  • Distance from the back of stove to centre of top flue 130mm 5.1 inches.
  • Distance from floor to centre of rear flue outlet 450mm – 17.71 inches.
  • 125mm 5″ top and rear flue collar included.
  • Internal stove dimensions –  H: 300mm W: 410mm D: 180mm
  • Option: 1000mm length of matching flue – Please see listing for more lengths
  • Option: Extra tall log guard Is offered on checkout – Standard Height Is 60mm at the highest point.  The additional bar adds 50mm to the overall height.
  • Option: Spare rope kit, glue and glass clips for servicing
  • Option: Ceramic glass is not covered under the guarantee for any stove on the market. Ceramic glass is fully heat resistant but will break if struck with a log, or similarly hard object. This glass is expensive, but for a small fee we are offering to guarantee it for a full year. This covers any accidental chips or cracks and photographic evidence will be required. This covers one claim only, not multiple breakages.
