About the Stove
THIS IS THE LAST CHANCE TO GET A BOILER STOVE OF THIS SIZE INSTALLED, AS LARGE BOILER STOVES ARE ALMOST IMPOSSIBLE TO GET THROUGH ECO DESIGN REGULATIONS. PARTS WILL CONTINUED TO BE STOCKED!

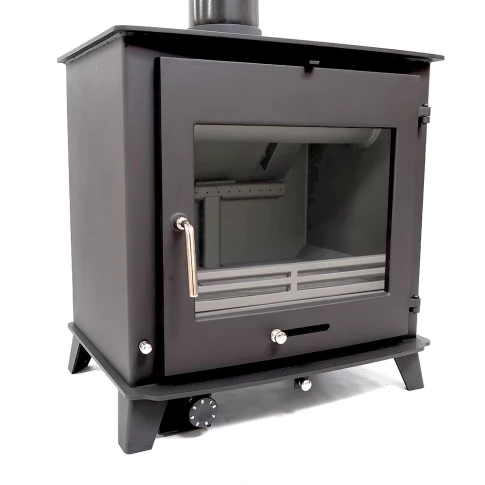

This advanced boiler stove has been designed by our UK brand Ecosy+ at great expense and is based on our extremely popular Ottawa range, admired by many stove installers and well reviewed by the public. In our (admittedly biased!) opinion, we feel this stove is one of the best looking and up to date boiler designs on the market. The integrated steel boiler hugs the fire for maximum heat transfer to the water and the advanced secondary burn system creates a clean and efficient burn by returning the initial smoke produced by the fire. This is a great feature on a wood burning boiler stove that is in constant use, because fuel consumption will be reduced.
This stove proves there really is no need to spend thousands of pounds to get an advanced, good quality wood burning multi-fuel boiler stove. Some of the features on this stove include a huge fully heat resistant, glass-fronted door that gives an amazing view of the fire and is kept clean with the advanced pre heated airwash system. Those of you who have had fires before will know this feature is very important. The stove is a fully welded construction that includes a 4mm thick body and 8mm thick top. We are so confident of its quality that we offer a 2 year guarantee; something that is not offered on any other boiler stove around this price bracket. We have tried to make this stove modern looking but not too contemporary so that it suits all interiors. Both the door and grate are made from think mineral cast iron and are designed to stand the test of time. (Spare parts are available for this stove and generally kept in stock at our distribution centre).
Boiler Spec
Note: Our expertise focusses around the use of the stove itself and associated chimney parts. Technical questions in relation to the plumbing side, may need to be put to a qualified plumber. Please see all technical information for the boiler itself below.
- The stove will supply a maximum of 15kw (50,000 BTU) to the central heating and hot water systems as well as 6kw (20,000 BTU) directly to the room. Your radiator requirements will be measured in BTU. To calculate the needed heat output, add up the BTU requirement of each radiator in the house. (1kw = approx 3,500 BTU.) ( Exact heat output will always depend on the volume and quality of the fuel burnt.)
- The stove includes an additional thermostat that automatically opens and closes an additonal vent on the stove. This probe is linked directly to the boiler and opens when the stove requires extra air and closes if the boiler gets too hot. This system should not be relied upon for stove opperation as it can be over ridden by manual controls.
- Suitable for open vented systems only (Not suitable for pressurised systems)
- The boiler has 4 x 1″ threaded outlets at the rear. 2 are for flow and 2 are for return. Depending on the system, you could diagonally cap off 1 flow and 1 return outlet, if they are not required.
- Pressure – 3 bar ( 1bar = 100kpa)
- Boiler Water Capacity – 19l
Clean Burn System
The Ottawa has an advanced secondary clean burn system that is controled by a chrome pull lever on the base of the stove. This lever opens and closes a vent that pulls air over the fire, re burning the initial smoke emitted by the stove. This makes the stove a lot more efficient and eco friendly saving you a large amount in fuel costs.
Stove Construction
Body – 8mm thick steel top and 4mm thick steel plate sides.
Grate – Includes a virgin ore cast iron ash riddling grate
Fire Brick – N/A
2 Year Guarantee
This covers the stove’s body and not the internal perishable parts like the grate. Your wood burning boiler stove guarantee is activated when the stove is invoiced. 6 digit number on the top of each invoice is the warranty number. For the stove to be covered it must be installed by a HETAS engineer.
Overnight Burn
The Ecosy+ Ottawa wood burning multi-fuel boiler stove has an excellent overnight burn system. Its airtight door gaskets and manually controlled air flow controls allow you to close the stove right down overnight and wake up to a warm house in the morning. All you will need to do is reopen the air controls, add a little coal or wood and watch the fire roar again.
Why Are We So Cheap?
This is a common question we get asked and understand why people will sometimes wonder how it can be done so cheap. We design a large amount of our products and they come direct from our factory to us. This completely cuts out any middle men. We can stock over 2500 wood burning stoves at any one time and ship direct to the end user with no showrooms. We always suggest prospective buyers take a look at our glowing feedback that currently has over 7000 positive comments on our stoves and stove products.
